Tutorial

Layered model convention

SpecSWD represents piecewise-linear one-dimensional models. Depth increases downward. Repeat a depth to mark a discontinuity: the first occurrence is the bottom value of the region above and the second is the top value of the region below. The final finite-depth point must be repeated before the half-space sample.

For example, the rows at 35 km below describe a discontinuity:

0.0   ... upper material ...
35.0  ... upper material ...
35.0  ... lower material ...

Python inputs normally use kilometres, kilometres per second, and grams per cubic centimetre. SpecSWD chooses nondimensional scales automatically unless scale_z, scale_v, and scale_rho are supplied to SpecWorkSpace.initialize.

Love-wave VTI model

A Love-wave model uses density, \(V_{SH}\), and \(V_{SV}\). Attenuating models also provide \(Q_N\) and \(Q_L\):

ws.initialize(
    "love", z, rho,
    vsh=vsh,
    vsv=vsv,
    Qn=qn,
    Ql=ql,
    reference_frequency=1.0,
)

Love waves cannot propagate in a fluid layer.

Rayleigh and Scholte VTI model

A VTI Rayleigh model uses \(V_{PH}\), \(V_{PV}\), \(V_{SV}\), density, and \(\eta\). Attenuation uses \(Q_A\), \(Q_C\), and \(Q_L\):

ws.initialize(
    "rayl", z, rho,
    vph=vph,
    vpv=vpv,
    vsv=vsv,
    eta=eta,
    Qa=qa,
    Qc=qc,
    Ql=ql,
    reference_frequency=1.0,
)

Set vsv == 0 for acoustic points. At those points vph and vpv must be equal. In an attenuating acoustic region, Qa and Qc must also be equal. A solid/fluid boundary must coincide with a repeated-depth discontinuity.

Fully anisotropic model

The Python compatibility API accepts stiffness in shape (21, nz). Components are the upper triangle of the symmetric \(6\times6\) Voigt matrix in this order:

c11 c12 c13 c14 c15 c16
    c22 c23 c24 c25 c26
        c33 c34 c35 c36
            c44 c45 c46
                c55 c56
                    c66

The following function creates the required array from matrices stored by depth:

def pack_c21(c66):
    # c66.shape == (nz, 6, 6)
    upper = np.triu_indices(6)
    return np.ascontiguousarray(c66[:, upper[0], upper[1]].T)

The supported anisotropic attenuation mapping uses two arrays, \(Q_\kappa\) and \(Q_\mu\), with Qani.shape == (2, nz) and qfunc_id=1:

ws.initialize(
    "aniso", z, rho,
    c21=c21,
    Qani=np.vstack([q_kappa, q_mu]),
    qfunc_id=1,
    reference_frequency=1.0,
)

Internally, the interpolated SEM arrays are point-major: xC21[point*21 + component] and xQani[point*nQani + q_component].

For an isotropic acoustic point, only c11, c12, c13, c22, c23, and c33 are nonzero and all equal the bulk modulus. All Q values at an acoustic point must be equal.

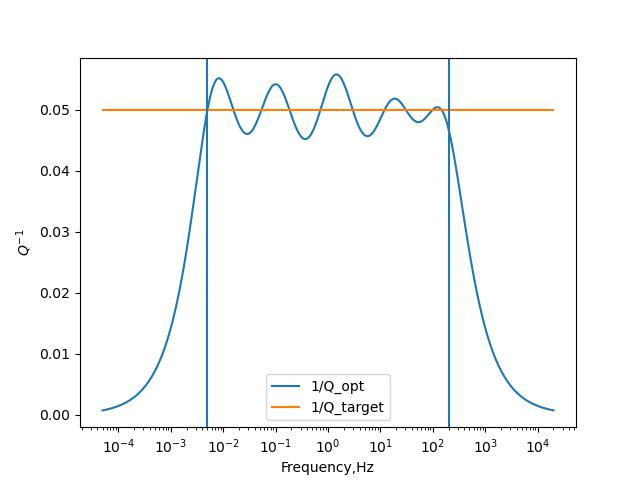

Constant-Q attenuation

SpecSWD uses a direct causal constant-Q modulus for positive frequency:

\[ M(\omega)=M_0\left(1+\frac{i}{Q}\right) \left(\frac{\omega}{\omega_0}\right)^\alpha, \qquad \alpha=\frac{2}{\pi}\tan^{-1}\left(\frac{1}{Q}\right). \]

M0 is the real storage modulus supplied by the user at the reference frequency: \(M_0=\operatorname{Re}M(\omega_0)\). Consequently, \(M(\omega_0)=M_0(1+i/Q)\); M0 is not the full complex modulus at the reference frequency. The default reference frequency is 1 Hz and can be changed through reference_frequency.

Velocity inputs are converted to their corresponding reference storage moduli. Acoustic input uses the bulk modulus even though inverse bulk modulus appears on the left side of the acoustic equation. Frequency derivatives and mixed frequency/model derivatives are evaluated analytically for group velocity and group kernels. SLS coefficient fitting is not part of the runtime attenuation model.

You can inspect the same constitutive response without running the solver:

from specd import constant_q_response

factor = constant_q_response(
    freq=np.array([0.1, 1.0, 10.0]),
    quality_factor=200.0,
    reference_frequency=1.0,
)

Phase and group velocity

compute_egn returns all selected modes at one frequency. Set only_phase=False to retain the generalized Schur data required by group velocity, eigenfunctions, and kernels:

phase = ws.compute_egn(freq=0.1, ang_in_deg=30.0, only_phase=False)
group = ws.group_velocity()

For Love and Rayleigh waves, group.shape == (nmodes,). For fully anisotropic waves, group.shape == (2, nmodes), with x and y components. Radial and transverse values are

phi = np.deg2rad(30.0)
radial = np.cos(phi) * group[0] + np.sin(phi) * group[1]
transverse = -np.sin(phi) * group[0] + np.cos(phi) * group[1]

Sensitivity kernels

After a QZ solve, request phase or group kernels for a zero-based mode:

phase_velocity_kernel, phase_qinv_kernel = ws.get_phase_kl(0)
group_velocity_kernel, group_qinv_kernel = ws.get_group_kl(0)
names = ws.get_kernel_names()

Attenuating calls return two arrays. The first differentiates the propagation velocity; the second differentiates the propagation inverse quality factor. Elastic calls return only the velocity array.

For fully anisotropic media, the current scalar compatibility entry point get_group_kl returns the radial group-velocity kernel. The numerical core also supports x- and y-component group kernels. The new result API will expose those components explicitly.

Variable-mode frequency grids

The number of modes may change with frequency. compute_dispersion therefore returns CSR containers instead of a padded rectangular array:

table = ws.compute_dispersion(
    frequencies_hz=np.array([0.05, 0.1, 0.2]),
    azimuths_deg=np.array([0.0, 30.0]),
    include_group=True,
)

modes, phase = table.phase_row(frequency_index=1, azimuth_index=0)
group_modes, group = table.group_row(1, 0)
table.to_hdf5("dispersion.h5")

See CSR and HDF5 output for the array layout and cross-language file schema.
